Eachine E010 a RTF beginner indoor whoop



SPECIFICATION
  • Item name: Eachine E010 Mini Quadcopter Quadcopter
    Size: 95mmX95mm ( motor to motor )
    Frame with motors: 8cmX8cmX5cm
    Box Size: 14X18X5.5cm
    Gyro: 6-axis
    Frequency: 2.4Ghz
    Channe1:4CH
    Battery: 3.7V (150MAH) (included)
    Battery connector type: mCPx JST PH 2.0 Transmitter Power: 2 x 1.5V AA battery(not included)
    Flight time: about 5 minutes
    Charging time: 30 - 50 minutes
    Flying distance: 30 meters
    Function: 360 flip/ a key return / headless mode

    Package included:
    1x Quadcopter
    lx Transmitters
    1x USB charging cable
    1x User Manual (Multi-language)
    4x propeller 4x Blade


REFERENCE








Settings on T-lite (MULTI-Module Firmware 1.3.2.61 aetr) & Eachine E010 (red board 2021):

Page 2/12
External RF OFF
Internal RF MULTI
Type E010r5 (NO subtype needed)

Page 5/12 INPUTS
I Ail
I Ele
I Thr
I Rud
I 05 SA
I 06 SB
I 07 SC
I 08 SD

Page 6/12 MIXES
CH1 Ail
CH2 Ele
CH3 Thr
CH4 Rud
CH5 I 05
CH6 I 06
CH7 I 07
CH8 I 08
( CH9 & CH10 are not bound ??? )
CH9 = RTH...
CH10=”GLIDE”?

MORE


Nice BEGINNER INDOOR whoop ( 0615 Motors / Weight: ~ 16.3g ). Nevertheless the " gamepad " is really tiny. As a pincher ( or not ) you should considering upgrading the thumbstick.

The manual, wich came in 6 differents langages, is simple. But it would be even simplier to labeled the R-Mod/RB Button " Flip Mode " instead of " Trimming Start Button " unless this button have other fonctionalities that i won't use and not aware of.

Spare parts are as follow :

- Frame ( Black or White Frame )
Eachine E010 for Blade Inductrix Tiny Whoop Black - US
Eachine E010 for Blade Inductrix Tiny Whoop Black - FR
Eachine E010 for Blade Inductrix Tiny Whoop White - US
Eachine E010 for Blade Inductrix Tiny Whoop White - FR


- Motor 0615 68000RPM
0615 68000RPM for Eachine E010 QX65 E010C E010S Blade Inductrix Tiny Whoop - US
0615 68000RPM for Eachine E010 QX65 E010C E010S Blade Inductrix Tiny Whoop - FR
( Purple ) Racerstar 0615 67000RPM
Racerstar 0615 67000RPM Purple - US
Racerstar 0615 67000RPM Purple - FR
( Black ) Racerstar 0615 59000RPM
Racerstar 0615 59000RPM Black - US
Racerstar 0615 59000RPM Black - FR
( Red ) Racerstar 0615 59000RPM
Racerstar 0615 59000RPM Red - US
Racerstar 0615 59000RPM Red - FR


- Flight Controller Receiver Board
Receiver Board - US
Receiver Board - FR


- Canopy
Canopy - US
Canopy - FR


- Propeller For E010 E010C E010S E013 Inductrix Tiny Whoop
1.22"/31mm ( Red / Green ) Propeller 4x Blade - US
1.22"/31mm ( Red / Green ) Propeller 4x Blade - FR
4x Blade Alternative
Propeller 4x Blade - US
Propeller 4x Blade - FR
Gemfan 3x Blade Alternative
Gemfan-1219 3x Blade - US
Gemfan-1219 3x Blade - FR


- Battery
3.7V 150maH 30C Lipo Battery - US
3.7V 150maH 30C Lipo Battery - FR

- Thumbstick Extension
20mm 2Pcs Rocker Stick Handle Extension For E010 Transmitter - US
15mm 2Pcs E010 FQ777-124 FQ777-124C Pocket Drone RC Sticks - US


DEFAULT CONFIG


There's not much to do about the config. Upgrade thumbstick and perhaps add a cam, switch to 3x blade prop and to higher C/capapcity batteries. That's all folks !

To add an AIO/Camera, start by removing the canopy then solder cam's cable ( or a connector ) at the board's battery connector joints

Then add a camera mount if you want to. You should be able to screw on the board most AIO's camera mount

Connect and/or place your AIO cam.

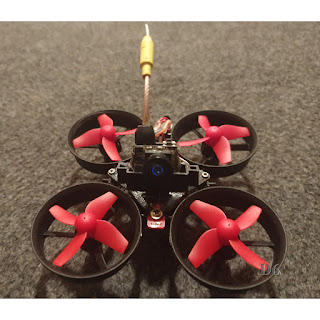

Final result and final weight


INSIDE THE BOX









DOWNLOAD
