THIS is how to do it! GepRC PHANTOM Toothpick Freestyle FPV Racing Drone



SPECIFICATION

  • GEPRC GEP-PT PHANTOM Toothpick Freestyle Frame Kit
  • Wheelbase: 125mm
    Bottom plate: 2.0mm
    Top plate: 1.5mm
    Side plate: 1.0mm
    Maximum support blade: 2.5inch
    Weight: 13.7g


  • GEPRC SPEEDX GR1103 Brushless Motor
  • KV: 8000/10000KV
    No.of Cells(Lipo): 8000KV 2-3S 10000KV 1-3S(3S 300mAh)
    Configuration: 9N 12P
    Stator Length:5mm
    Shaft Diameter: 1.5mm
    Motor (Dimension(Dia.*Len)): cl) 15.2*13.6mm
    Rotor: N52H arc magnets
    Weight: 3.8g


  • Caddx Turbo E0S2
  • Image Sensor: 1/3° CMOS Sensor
    Horizon. Resolution: 1200 TVL
    T/ System: NTSC / PAL option
    IMAGE: 16:9
    Synchronization: Internal
    Electronic Shutter: PAL: 1/50-100,000; NTSC: 1/60-100,000
    S/N Ratio: >52dB (AGC OFF)
    Video Output: CVBS
    Lens: 2.1mm
    Min. Illumination: 0.001 Lux@F1.2
    Auto Gain Control: YES
    BLC: YES
    VVDR: Global WDR
    DNR: 2 DNR
    Dimensions: 14mm*14mm.16mm
    Wide Power Input: DC 3.3-6V
    Work Temperature: -20°C-+60°C
    Work Humidity: 2096-80%
    Weight: 3.5g (N.W.)


  • GEPRC Stable F411 ESC Part BLheli_S 2-45 4in1 Brushless
  • Model: Stable F411
    MCU: BB21F16G
    Continuous current: 1.
    Input voltage: 2-45 LIPO
    ESC protocol: pwm, oneshot125, multishot dshot150, 300, 600, ...
    Size: 23mm*21mm
    Mounting hole: 16*16mm
    Firmware target: Blheli_S G_H_30
    Current meter: 210
    Weight: 2.7g


  • GEPRC F4 Flight Controller A10 OSD
  • Model: Stable F411
    MCU: STM32F411
    IMU: MPU6000 gyro/accelerometer (SPI)
    OSD: BetaFlight OSD w/ AT7456E chip
    BEC Output: 5V@2A
    Size: 21mm*21mm
    Mounting holes: 16mm*16mm
    Integrated LC Filter
    Input voltage 2-45 LIPO
    Firmware target: MATEKF411
    Weight: 2.5g


  • GEPRC 5.8G 48CH 25/100/200mW Switchable FPV Transmitter
  • Model: Stable F411
    Power : PIT/25/100/200mW
    Antenna interface : IPEX (UFL)
    Telemetry: IRC Tramp
    Size: 17mm*27mm
    Mounting holes: 16*16mm
    Integrated LC Filter
    Weight: 1.6g


  • GEPRC 16mm*16mm STABLE F411 Stack Download Manual



REFERENCE






MORE

Props
HQ Prop Bi-Blade 2.5"/65mm 1.5mm Shaft
Gemfan Bi-Blade 2.5"/65mm 1.5mm Shaft

Battery
Gaoneng GNB 3s 11.4V 300mAh 80C/160C HV 4.35V XT30

With props (and Rx, Hot Glue, etc...) mine is almost 60g


AUW close to 85g with 3s 300mah GNB


Tought it was like those AIO camera. But itsn't :)



DEFAULT CONFIG




GepRC Pantom Toothpick Default Config Dump Download Dump

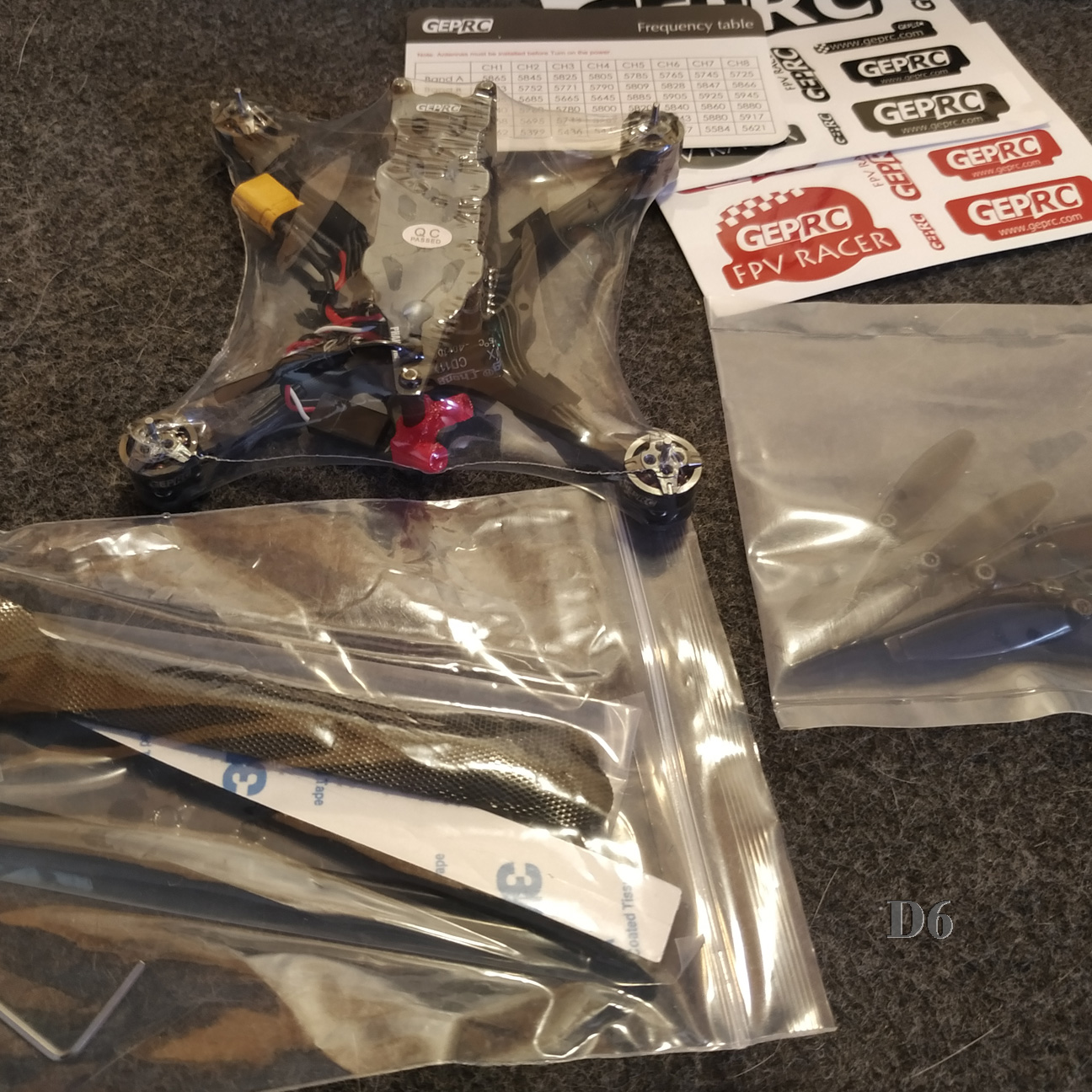

INSIDE THE BOX


It comes with the following accessories:

2 sets of props
RX antenna tubes
2 battery straps
Sticky battery pad (for top plate)
Foam tape (landing gear?)
Allen key (works with all the bolts on this model)
